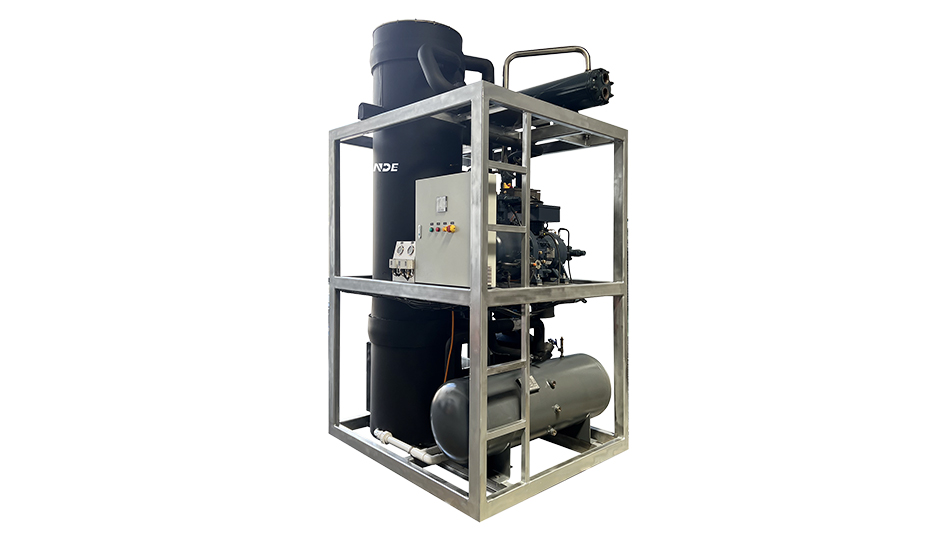

DRIT Sereis Tube Ice Machine
Tube ice size: Ø22mm, Ø29mm, Ø35mm; Daily Capacity: 3T-30T/day
The DRIT sereis tube ice machine utilizes advanced refrigeration technology and an automated control system to produce irregularly shaped hollow tube ice.
The process begins with the compressor cooling the system, and once the tube ice reaches the desired thickness, it switches to the harvesting mode.
The refrigerant's hot gas enters the evaporator, causing the tube ice to melt and detach. The ice is then cut into preset sizes by the ice cutter and discharged through the ice outlet. This cycle continues automatically.
- DESCRIPTION
- FEATURES
High-Quality Tube Ice
Clean, transparent, and slow-melting for extended cooling performance.
Hollow cylindrical shape with outer diameters of Ø22mm, Ø29mm, and Ø35mm.
Irregular height of approximately 30-40mm.
The middle hole size (5-10mm) can be adjusted by modifying the ice-making time.
Capable of producing solid ice when required.
The Standard Working Conditions
Ambient temperature: 28°C
Water temperature: 23°C
Evaporating temperature: -15°C
Condensing temperature: 40°C
Power supply: 3P/380V/50HZ or customized
Tube ice size: Ø22mm, Ø29mm, Ø35mm
Refrigerant: R404A/R22
Wide Application
Due to its unique hollow structure, tube ice retains cooling effectively and is ideal for rapid cooling applications. It is widely used in industries such as food processing, beverage cooling, seafood preservation, and logistics distribution.
Versatile Model Options
Available in multiple capacities (3T, 5T, 10T, 15T, 20T, 25T, 30T) to meet diverse application requirements.
Fast & Continuous Ice Production
Ice production starts within 18-25 minutes after startup.
Ensures a stable and continuous ice-making process.
Smart Control System
PLC control system allows adjustable ice-making time (18-25 minutes) based on needs and environmental conditions.
Easy Installation & Operation
Simply connect water and electricity on-site for immediate use.
